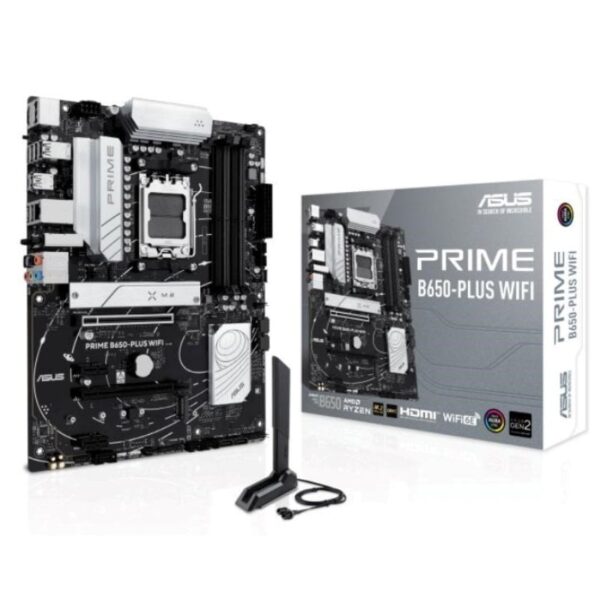

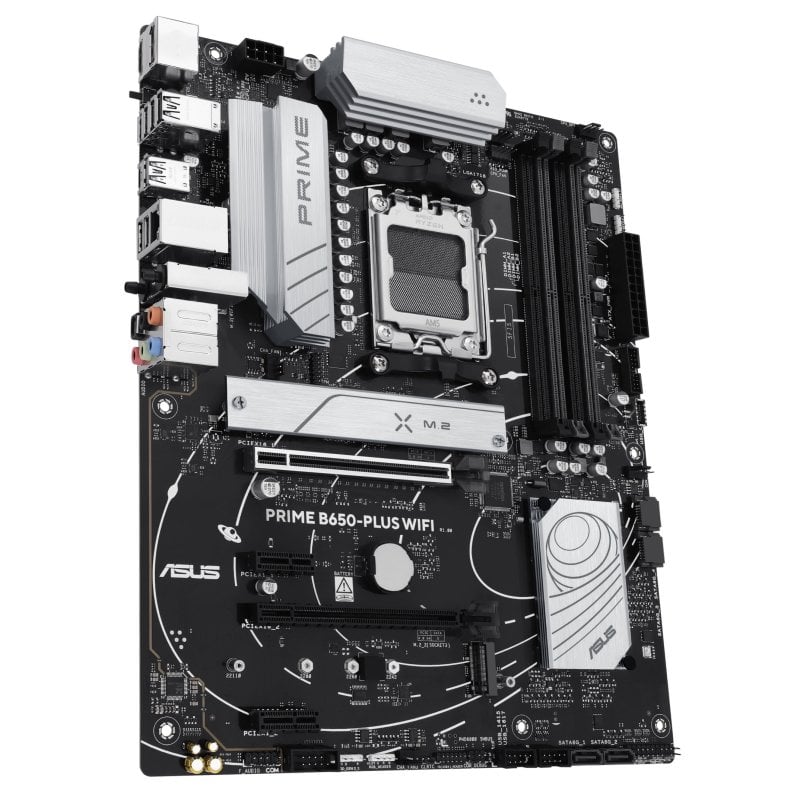

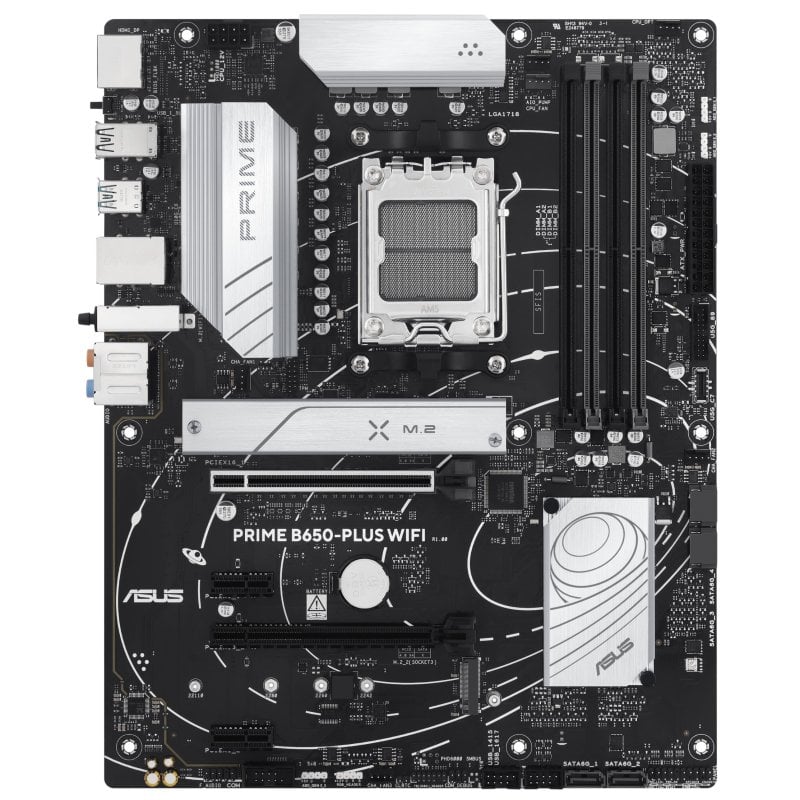

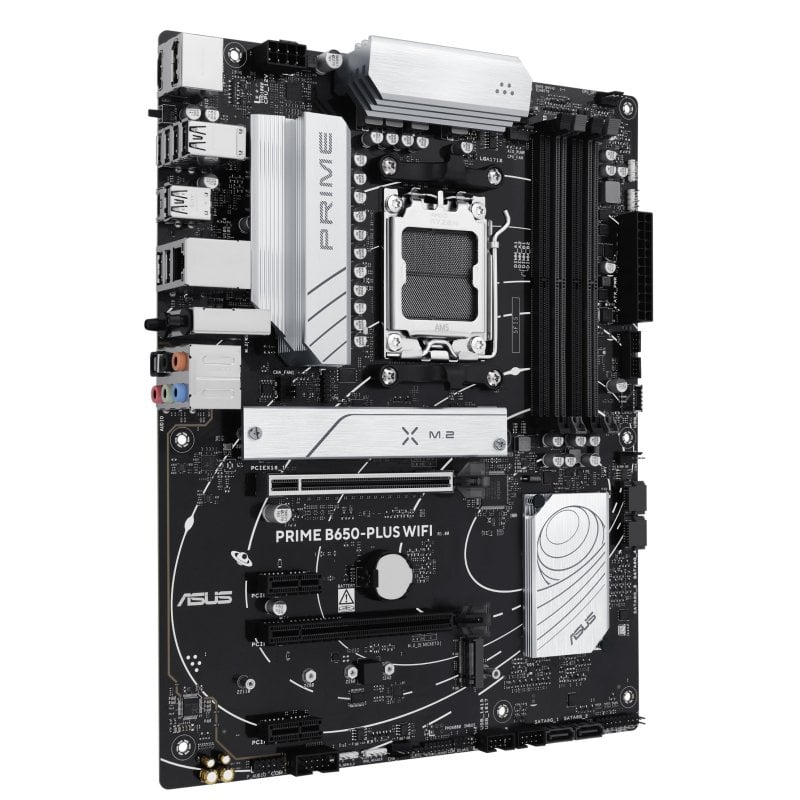

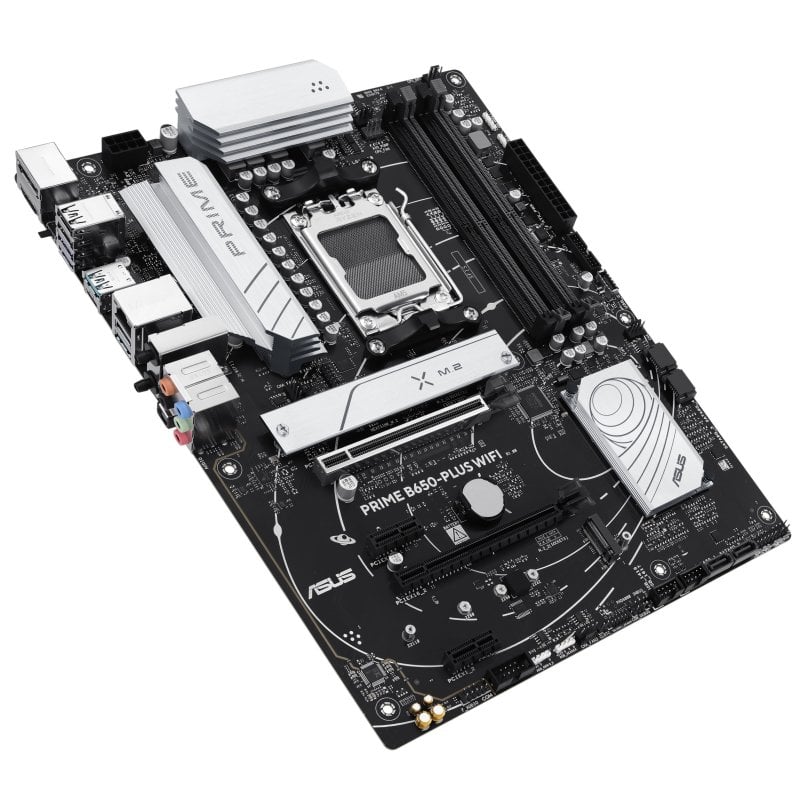

Alquiler ASUS PRIME B650-PLUS WIFI

Las placas base ASUS de la serie Prime están diseñadas por expertos para liberar todo el potencial de los procesadores AMD Ryzen de las series 9000, 8000 y 7000. Con un diseño de potencia robusto, soluciones de refrigeración completas y opciones de ajuste inteligente, PRIME B650-PLUS WIFI proporciona a los usuarios y a los constructores de PC DIY una serie de optimizaciones de rendimiento mediante funciones intuitivas de software y firmware. Esta plataforma ofrece la potencia y la conectividad que exigen las aplicaciones informáticas avanzadas de IA.

Características

• Socket AMD AM5: Preparado para procesadores AMD Ryzen? series 9000, 8000 y 7000

• Conectividad ultrarrápida: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, USB frontal 5Gbps Type-C®, Thunderbolt? Compatibilidad con 4 conectores

• ASUS OptiMem II: Enrutamiento cuidadoso de pistas y vías, además de optimizaciones de la capa de tierra para preservar la integridad de la señal para un mejor overclocking de la memoria

• Refrigeración integral: disipador de calor VRM, disipador de calor M.2, disipador de calor PCH, conectores de ventilador híbridos y Fan Xpert 2+

• Iluminación Aura Sync RGB: Conectores Gen 2 direccionables integrados y conector Aura RGB para tiras LED RGB, que se sincronizan fácilmente con hardware compatible con Aura Sync

Especificaciones ASUS PRIME B650-PLUS WIFI

• Procesador
  • AMD Socket AM5 for AMD Ryzen? 9000 & 8000 & 7000 Series Desktop Processors*

  • * Refer to www.asus.com for CPU support list.
  • Chipset: AMD B650 Chipset
• Memoria
  • 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*

  • Dual Channel Memory Architecture

  • Supports AMD Extended Profiles for Overclocking (EXPO?)

  • OptiMem II

  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
• Gráficos
  • 1 x DisplayPort**

  • 1 x HDMITM port***

  • * Graphics specifications may vary between CPU types.

  • ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansión

  • 1 x PCIe 4.0 x16 slot (supports x16 mode)

  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

  • 2 x PCIe 4.0 x1 slots

  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

  • ** Specifications vary by CPU types.
• Almacenamiento
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

  • * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

  • ** Specifications vary by CPU types.
• Ethernet

  • 1 x Realtek 2.5Gb Ethernet
• Inalámbrico
  • Wi-Fi 6E

  • 2×2 Wi-Fi 6E (802.11ax)

  • Supports 2.4/5/6GHz frequency band*

  • Bluetooth® v5.3**

  • * Wi-Fi 6GHz frequency band regulatory may vary between countries.
  • ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
• USB

  • Rear USB (Total 8 ports)

    • 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)

    • 2 x USB 5Gbps ports (2 x Type-A)

    • 2 x USB 2.0 ports (2 x Type-A)

  • Front USB (Total 7 ports)

    • 1 x USB 5Gbps connector (supports USB Type-C®)

    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • Supports up to 24-Bit/192 kHz playback

  • Audio Features

  • Audio Shielding

  • Premium audio capacitors

  • Dedicated audio PCB layers
• Puertos traseros
  • 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)

  • 2 x USB 5Gbps ports (2 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI port

  • 1 x Wi-Fi Module

  • 1 x Realtek 2.5Gb Ethernet port

  • 5 x Audio jacks

  • 1 x Optical S/PDIF out port

  • 1 x BIOS FlashBack? button
• Conectores internos
  • Fan and Cooling related

    • 1 x 4-pin CPU Fan header

    • 1 x 4-pin CPU OPT Fan header

    • 1 x 4-pin AIO Pump header

    • 3 x 4-pin Chassis Fan headers

  • Power related

    • 1 x 24-pin Main Power connector

    • 1 x 8-pin +12V Power connector

  • Storage related

    • 2 x M.2 slots (Key M)

    • 4 x SATA 6Gb/s ports

  • USB

    • 1 x USB 5Gbps connector (supports USB Type-C® )

    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  • Miscellaneous

    • 3 x Addressable Gen 2 headers

    • 1 x Aura RGB header

    • 1 x Clear CMOS header

    • 1 x COM Port header

    • 1 x Front Panel Audio header (AAFP)

    • 1 x SPI TPM header (14-1pin)

    • 1 x 20-3 pin System Panel header with Chassis intrude function

    • 1 x Thunderbolt? (USB4®) header
• Especiales
  • ASUS 5X PROTECTION III

  • DIGI+ VRM

  • LANGuard

  • Overvoltage Protection

  • Safeslot Core+

  • Stainless-Steel Back I/O

  • ASUS Q-Design

  • Q-DIMM

  • Q-LED Core

  • Q-Slot

  • ASUS Thermal Solution

  • Flexible M.2 heatsink

  • VRM heatsink design

  • ASUS EZ DIY

  • BIOS FlashBack? button

  • BIOS FlashBack? LED

  • ProCool

  • Aura Sync

    • Aura RGB header

    • Addressable Gen 2 headers
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Formato: ATX
