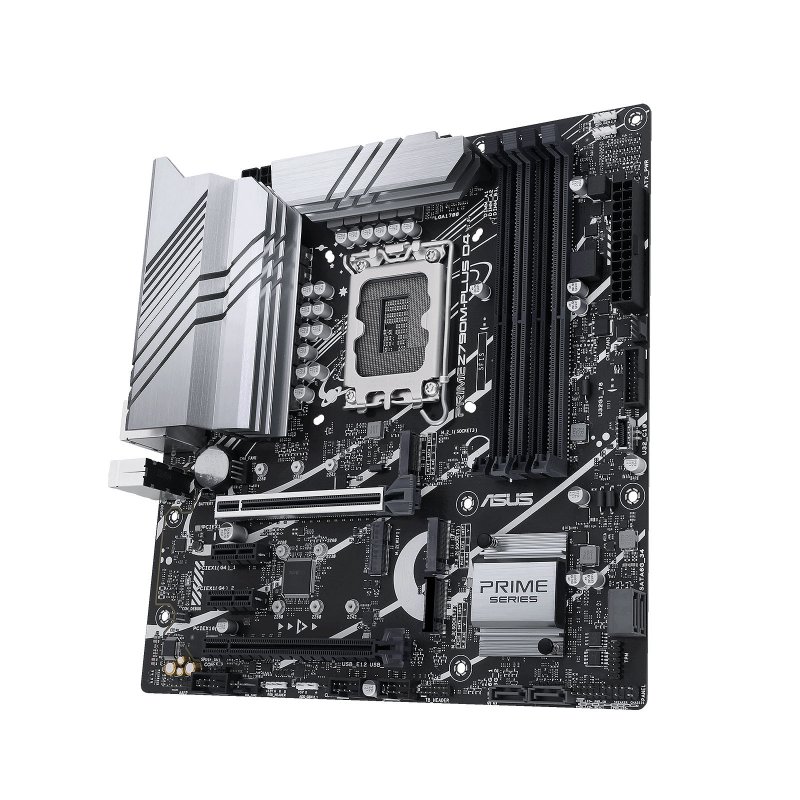

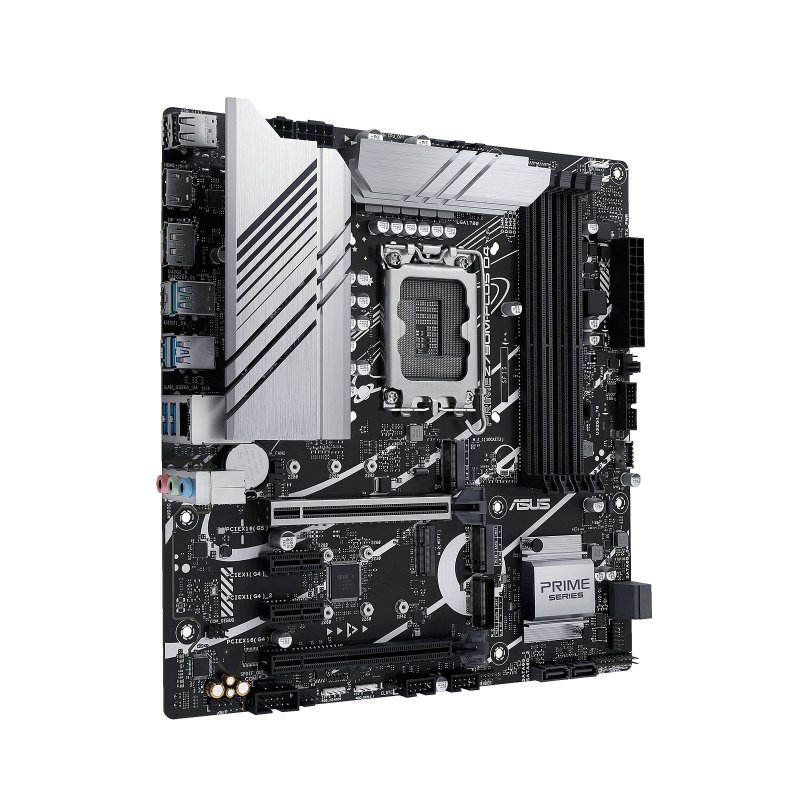

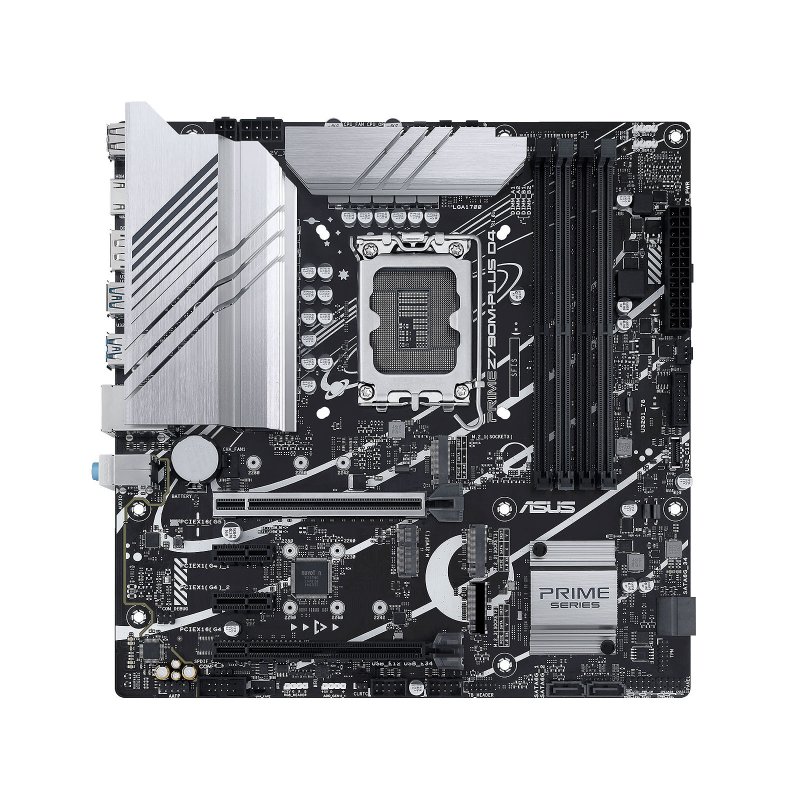

Alquiler ASUS PRIME Z790M-PLUS D4 Reacondicionado

ASUS Prime Z790M-PLUS D4, una placa base Intel Z790 LGA 1700 mATX con PCIe® 5.0, tres ranuras M.2, 10+1 DrMOS, DDR4, LAN Intel® de 1 Gb, HDMI®, DP, USB 3.2 Gen 2×2 tipo C®, USB 3.2 Gen 1 tipo C® frontal, compatibilidad con Thunderbolt™ (USB4®), Aura Sync

Características

• Zócalo Intel® LGA 1700: compatible con los procesadores Intel® de 12.ª y 13.ª Gen
• Solución de alimentación mejorada: 10 + 1 DrMOS, PCB de seis capas, conectores ProCool, bobinas de aleación y condensadores duraderos para un suministro de energía estable.
• Conectividad de última generación: PCIe® 5.0, Ethernet Intel® 1 Gb, USB 3.2 Gen2x2 tipo C®, panel frontal con USB 3.2 Gen 1 tipo C®, compatibilidad con cabezal Thunderbolt™ (USB4®)
• ASUS OptiMem II: enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa de fondo para preservar la integridad de la señal y mejorar el overclocking de la memoria
• Refrigeración completa: disipadores térmicos del VRM de gran tamaño, disipador térmico pasivo PCH, cabezales de ventiladores híbridos y Fan Xpert 4 con AI Cooling II.»

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z790 Chipset
• Memoria
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Gráficos
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • ***Supports 4K@60Hz as specified in HDMI 2.1.
• Ranuras de expansión
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0 x1 slots
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Almacenamiento
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Intel® 1Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • M.2 slot only (Key E, CNVi & PCIe)*
  • *Wi-Fi module is sold separately.
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports*
  • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • – Audio Shielding
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Puertos de E/S del panel posterior
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI®  port
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
• Conectores de E/S internos
  • Fan and cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin + 12V Power connector
  • 1 x 4-pin + 12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header
• Características especiales
  • ASUS 5X PROTECTION III
  • – DIGI+ VRM (- Digital power design with DrMOS)
  • – LANGuard
  • – Overvoltage Protection
  • – SafeSlot Core+
  • – Stainless-Steel Back I/O
  • ASUS Q-Design
  • – Q-DIMM
  • – Q-LED Core
  • – Q-Slot
  • ASUS Thermal Solution
  • – VRM heatsink design
  • ASUS EZ DIY
  • – ProCool
  • Aura Sync
  • – Aura RGB header
  • – Addressable Gen 2 headers
  • Funciones de software
  • ASUS Exclusive Software
  • Armoury Crate
  • – Aura Sync
  • – Fan Xpert 4 (with AI Cooling II)
  • – Power Saving
  • AI Suite 3
  • – TurboV EVO
  • – DIGI+ VRM
  • – PC Cleaner
  • ASUS CPU-Z
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manejabilidad
  • WOL by PME, PXE
• Accesorios
  • Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 2 x Screw packages for M.2 SSD
• Documentation
  • 1 x User guide
• Sistema operativo
  • Windows® 11, Windows® 10 64-bit
• Factor de forma
  • mATX Form Factor
  • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
